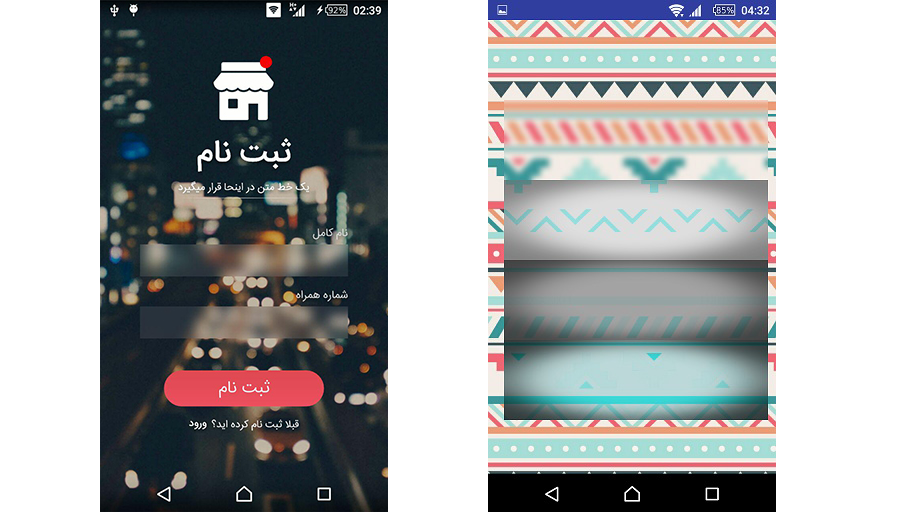

At the beginning, the only purpose was to blur all layers below. Then I decided to make it more flexible and publish it. Now the title is “Android View Effects”, which means you can do more than just blurring.
You can see the full source at my GitHub repository: https://github.com/mirrajabi/view-effects.
Full documentation is also available at the link above.
Hi, this is my second post, and I hope it could be useful to you. Using this component is really easy, and I’ll show you how to do it step by step. First, I’m going to give you the C# code and then I will explain how it works.
using UnityEngine;
using System.Collections;
public class Carousel : MonoBehaviour
{
private static int _nearestIndex = 0;
private static float _minMoveTreshold = 20f;
private static float _newScroll = 0;
private static AnimationCurve _miniTransitionCurve;
public static bool Draw(Rect rect, ref float scroll, out int selectedIndex, float growMultiplyer, float slidesDistance, Texture2D[] slides, float size, float transitionTime, bool startTransition)
{
CheckMoves();
selectedIndex = _nearestIndex;
if (_miniTransitionCurve != null && _miniTransitionCurve.Evaluate(Time.time) < 0.90f)
{
if (Input.touchCount < 1)
{
scroll = Mathf.Lerp(scroll, _newScroll, _miniTransitionCurve.Evaluate(Time.time));
}
}
if (startTransition)
{
_miniTransitionCurve = AnimationCurve.Linear(Time.time, 0, Time.time + transitionTime, 1);
_miniTransitionCurve.preWrapMode = WrapMode.Clamp;
_miniTransitionCurve.postWrapMode = WrapMode.Clamp;
}
GUI.BeginGroup(rect);
{
GUI.BeginGroup(new Rect(-scroll, rect.height / 2 - size * growMultiplyer, int.MaxValue, size * growMultiplyer * 2));
{
float minDistance = float.MaxValue;
for (int i = 0; i < slides.Length; i++)
{
float relativePosition = rect.width / 2 - size / 2 + i * (size + slidesDistance) + size / 2 - scroll;
float grow = 1 + Ratio(relativePosition, rect.width) * (growMultiplyer - 1);
GUI.DrawTexture(new Rect(rect.width / 2 - size * grow / 2 + i * (size + slidesDistance), size * growMultiplyer - size * grow / 2, size * grow, size * grow), slides[i]);
if (GUI.Button(new Rect(rect.width / 2 - size * grow / 2 + i * (size + slidesDistance), size * growMultiplyer - size * grow / 2, size * grow, size * grow), "", GUIStyle.none))
{
if (!_moved)
{
selectedIndex = i;
return true;
}
}
float distance = Mathf.Abs(relativePosition - rect.width / 2);
if (distance < minDistance)
{
minDistance = distance;
_nearestIndex = i;
_newScroll = scroll + (relativePosition - rect.width / 2);
}
}
}
GUI.EndGroup();
}
GUI.EndGroup();
return false;
}
private static Vector2 _startPosition;
private static bool _moved = false;
private static void CheckMoves()
{
if (Input.touchCount > 0)
{
if (Input.touches[0].phase == TouchPhase.Began)
{
_moved = false;
_startPosition = Input.touches[0].position;
}
if (Input.touches[0].phase == TouchPhase.Moved || Input.touches[0].phase == TouchPhase.Ended || Input.touches[0].phase == TouchPhase.Canceled)
{
if (Vector2.Distance(Input.touches[0].position, _startPosition) > _minMoveTreshold)
{
_moved = true;
}
}
}
}
private static float Ratio(float pos, float length)
{
if (pos <= length / 2)
return pos / (length / 2);
else
return (length - pos) / (length / 2);
}
}
The CheckMoves function checks if we are scrolling or selecting a slide. If we move our hand and our touch movement was bigger than the threshold, we are scrolling. As you can see, the Draw function is static, so you don’t need to attach this component to an existing game object. This function does all the work for you, and all you have to do is place it in an OnGUI() method where you want to draw a carousel. If you didn’t catch what I just said, here is the code:
When I was a University student, we were tasked to implement a simple Ludo game in C++ language. It was a fun project and I learned a few things from it. The code is not that great but it works! And at the time, I was proud of it. So why not share it!
You can find the code on this GitHub repository.
Note: I used the rlutil library to change foreground colors. To compile it, you need to download it and add it to your project headers.
“rlutil” project’s blog: http://tapiov.net/rlutil
